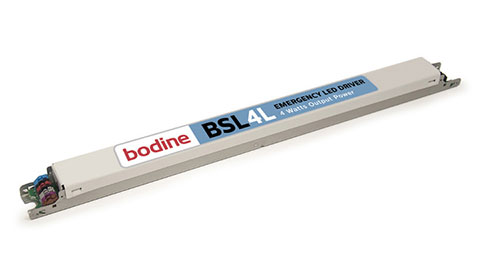

Bodine BSL4L LED Emergency Driver

Description

Bodine BSL4L Emergency LED Driver Class 2 Output 4 Watts Output Power

Benefits

• New compact design for space-limited linear LED fixtures
• Smart Charger Technology for low energy consumption
• Meets Title 20 CEC (California Energy Commission) efficiency standards
• Class 2 output (UL1310 Certified)
• Poke-In wiring connections for simplified installation
• RoHS Compliant

Specifications

UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2 No. 141
Field or Factory Installation (Indoor and Damp)
Output Class 2 Compliant

Illumination Time
90 Minutes

Initial Light Output
Up to 520 lumens*

Full Warranty
5 Years (NOT pro-rata)

Universal Input Voltage
120-277 VAC, 50/60 Hz

AC Input Power Rating
3.0 W (Maximum)

Output Voltage
15 – 54 VDC

Output Power
4.0 W (Maximum)

Test Switch / Charging Indicator Light
Two-Wire Illuminated Test Switch (2W-ITS)**

Battery
High-Temperature, Maintenance-Free

Nickel Cadmium Battery
7- to 10-Year Life Expectancy

Recharge Time
24 Hours

Temperature Rating
Ambient : 0°C to +60°C (32°F to 140°F)
Case: Tc (max): 65°C

Dimensions
16.7” x 1.18” x 1.0” (424 mm x 30 mm x 25 mm)
Mounting Center 16.3” (415 mm)
Weight
1.2 lbs. (.544 kg) – metal case
