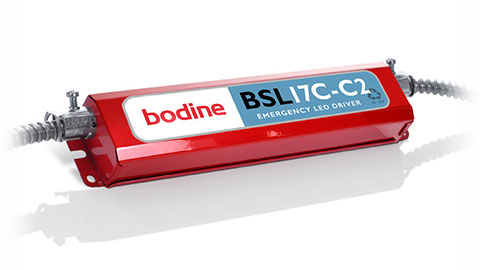

Bodine BSL17C-C2 LED Emergency Driver

Description

Bodine BSL17C-C2 LED Emergency Driver. Emergency LED Driver, Listed for field installation, Class 2 output, 7.5 Watts output power.

Benefits:
• Listed for field or factory installation – UL 924 and CSA C22.2 No. 141
Emergency Lighting Compliant
• Smart Charger Technology for low energy consumption
• Meets CEC Title 20 (California Energy Commission) efficiency standards
• Class 2 output – UL 1310 Certified, CSA 22.2 No 223-M91 compliant
• Controlled power for predictable discharge
• Emergency mode initial lumen output of up to 975 lumens
• 15-50 VDC for wide range of LED loads
• Universal input (120 through 277 VAC, 50/60 Hz)
• RoHS Compliant

Specifications

UL Listed
Listed to UL924 and CSA 22.2 No. 141
For Field or Factory Installation
(Indoor and Damp)

Illumination Time
90 Minutes

Full Warranty
5 Years (NOT pro-rata)

Universal Input Voltage
120-277 VAC, 60 Hz

AC Input Power
3.0 (Maximum)

Output Voltage
15.0 – 50.0 VDC

Output Power
7.5 W (Maximum),

Test Switch/Charging Indicator Light
2 W – ITS (2-Wire illuminated test switch)

Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Recharge Time
24 Hours

Temperature Rating
Ambient : 0°C to +55°C (32°F to 131°F)
Case: Tc (max): 65°C

Dimensions
12.0” x 2.4” x 1.5”
(304 mm x 60 mm x 38 mm)
Mounting Center 11.5” (292 mm)
Weight
4.3 lbs. (1.95 kg)
