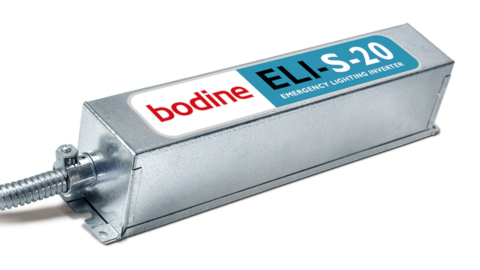

Bodine ELI-S-20 Emergency Lighting Inverter

Description

Bodine ELI-S-20 Emergency Lighting Inverter. Sinusoidal (Sine Wave) Output 20 or 25 Watts Power Auto Select 120 or 277 VAC Code-Compliant 90-Minute Runtime.

Benefits

Sine wave output
• Fused output load connections
• Works with LED and fluorescent fixtures
• Ideal for (but not limited to) screw-base LED lamps
• Auto Select feature helps reduce wiring errors
• Compatible with AC (line voltage) driven TLED lamps
• Remote-mounting up to 250 feet maximum

Specifications

UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2 No. 141
Field or Factory Installation (Indoor and Damp)Output Class 2 Compliant

Illumination Time
90 Minutes

Maximum Load Power (including AC ballast/driver)
20 W (0°C to 50°C) UL and CSA
25 W (0°C to 45°C) UL only

Full Warranty
5 years (NOT pro-rata)

AC Input Voltage
120 or 277 VAC, 60 Hz

AC Input Current
65 mA

AC Input Power Rating
8.0 W

Output Voltage
120/277 VAC (Auto Select), 60Hz

Output Current
120 V, 165 or 210 mA 277 V, 72 or 90 mA

Transfer Time
2 to 5 seconds

Test Switch
Single Pole (Momentary)

Battery
High-Temperature, Maintenance-Free ,
Nickel-Cadmium Battery,
7- to 10-year life expectancy

Battery Charging Current
250 mA

Recharge Time
24 Hours

Charging Indicator Light
LED

Temperature Rating (Ambient)
32° F to 122° F (0° C to 50° C) for 20 W
32° F to 113° F (0° C to 45° C) for 25 W
Weight
5 lbs. (2.3 kg)
