WattStopper LMIO-102 PARTITION INTERFACE

Description

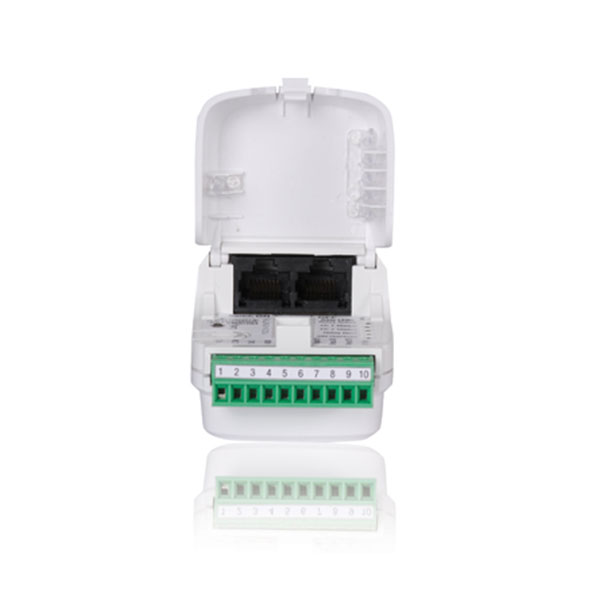

WattStopper LMIO-102 PARTITION INTERFACE. The LMIO-102 Partition Interface automatically coordinates lighting controls in flexible spaces with up to four movable walls equipped with contact closures. It is part of a Digital Lighting Management (DLM) system, and can reconfigure connected switches and occupancy sensors.

Features

• Push n’ Learn™ functionality for personalizing system settings to accommodate application needs
• Four status LEDs indicate if walls are open or closed
• Two RJ45 ports with hinged dust cover
• UL 2043 plenum rated
• The product meets the materials restrictions of RoHS
• BAA/TAA-compliant models available

Specifications

• Input voltage: 24VDC from DLM local network
• Current consumption: 20mA
• DLM local network connection: 2 RJ45 ports
• Removable terminal block for connections to third party contact closure inputs
• Input ratings:
– Input max. sink/source current: 1- 5 mA
– Logic input signal voltage High: >18 VDC
– Logic input signal voltage Low: < 2 VDC
• Operating conditions: for indoor use only; 32-104°F (0-40°C)
• Fits inside 4” x 4” j-box, 1 gang back box or 3” or 4” octagonal box; optional DIN rail mounting
• UL and cUL listed
• Five year warranty

For other items like the WattStopper LMIO-102 PARTITION INTERFACE click here.

For more information on WattStopper’s line of lighting control solutions click here.

LMIO-102 Spec Sheet

Specifications:

• 24 VDC
• 20 mA current consumption

LMIO-102 Installation Instructions
