Wattstopper UT-305-X ULTRASONIC CEILING SENSOR

Description

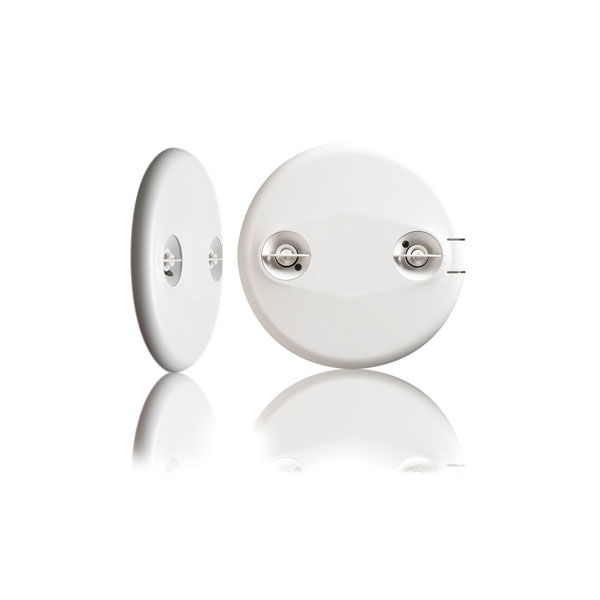

Wattstopper UT-305-X ULTRASONIC CEILING SENSOR. This is the ultrasonic low voltage ceiling sensor. Wattstopper’s UT-300 Ultrasonic Ceiling Sensors automatically turn lighting on and off based on occupancy. The sensors mount on the ceiling with a flat, unobtrusive appearance and provides 360° coverage.

UT-300 Series Sensors operate on 24 VDC, VAC or halfwave rectified. They use 40 KHz high frequency ultrasound to sense occupancy and automatically turn lighting on. When no occupancy is detected for the length of the time delay, lighting automatically turns off. For manual-on operation, the units work with a low-voltage momentary switch.

Features

• Advanced control logic based on RISC microcontroller
provides:
– Advanced Signal Processing eliminates false triggers and
provides immunity to RFI and EMI
– Walk-through mode turns lights off three minutes after
the area is initially occupied – ideal for brief visits such as
mail delivery
• LED indicates occupancy detection
• Coverage 500-2,000 square feet
• Available with isolated relay for integration with BAS or HVAC
• DIP switch simplifies sensor adjustments
• Patented ultrasonic diffusion technology spreads coverage to
a wider area
• UT-300 Series Sensors work with low-voltage momentary
switches for manual control
• Clip mounting system makes ceiling tile installation simple
• Uses plug terminal wiring system for quick and easy
installation
• BAA/TAA-compliant models available
• Sensor coverage tested to NEMA Guide Publication WD 7-2000

Specifications

• 24 VDC/VAC
• Time delays: 5, 10, 15, 20 or 30 minutes, Walk-through/
Test Modes
• Sensitivity adjustment: variable with trimpot
• Ultrasonic frequency: 40 kHz
• UT-300 contains isolated relay with N/O and N/C outputs;
rated for 1 Amp at 30 VDC/VAC
• Mounting options: ceiling tile; 4” square junction box with
double-gang mud ring
• Max. UT-300s per power pack: B=2, BZ=3
Max. UT-305s per power pack: B=3, BZ=4
• Dimensions: 4.5” x 1” (114.3mm x 25.9mm) diameter x depth
• UL and cUL listed
• Five year warranty
