W-SERIES – ULTRASONIC CEILING SENSOR
W SERIES ULTRASONIC SENSORS EFFECTIVELY CONTROL OFFICES, RESTROOMS, UTILITY AREAS, OPEN OFFICE SPACES AND WAREHOUSES. THE W-500A IS PERFECT FOR OFFICES, CONFERENCE ROOMS, RESTROOMS AND OTHER AREAS UP TO 500 SQUARE FEET. THE W-1000A FITS IN LARGER SPACES, SUCH AS STORAGE AREAS. THE W-2000A IS IDEAL FOR OPEN OFFICE AREAS OR LARGE WAREHOUSES AND CAN CONTROL PARTITIONED OPEN OFFICE SPACES WHEN CONFIGURED IN HIGHLY VERSATILE ZONE PATTERNS. THE W-2000H RELIABLY COVERS HALLWAYS WITH WALLS – BY WATTSTOPPER
- Description
- SPECS
- Please visit literite.com for our new store!
- NON VERIFIED
Description

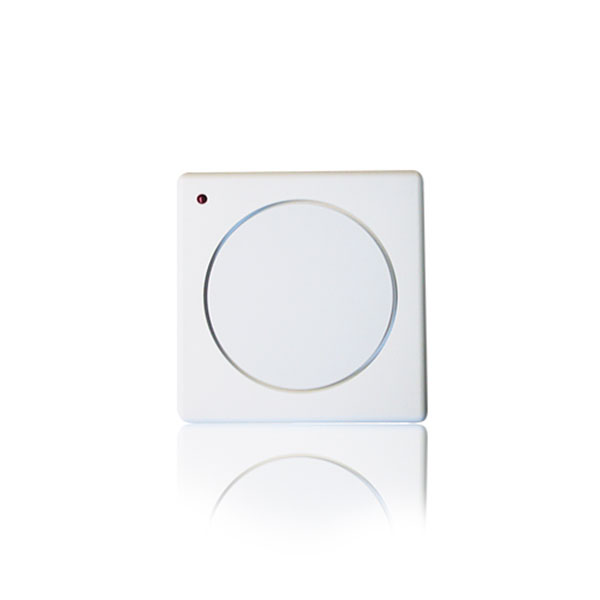

This is the ultrasonic ceiling sensor. Wattstopper’s W Series Ultrasonic Ceiling Sensors are versatile motion detectors that control lighting in a wide variety of applications. W Series Sensors can be used individually or as part of an integrated system of Wattstopper lighting control products.
The 24 VDC W Series Sensors utilize advanced omni-directional, ultrasonic technology to sense occupancy. When movement is detected in a controlled area, the W Series Sensors will switch lights on via low-voltage wiring through to a Wattstopper power or auxiliary pack. Once the area is vacated and the user adjustable time delay (15 seconds to 15 minutes) has elapsed, lighting systems automatically switch off. Check out Wattstopper DLM products here.
WS-Cutsheet-W-Series-Ultrasonic-Ceiling-Sensors
- Solid state, crystal-controlled (25 kHz ± 0.005%)
- Temperature and humidity-resistant 25 kHz receivers: W-500A contains one receiver, other models contain two receivers
- Adjustable time delay: 15 seconds to 15 minutes
- Mounting options: ceiling tile, 4” sq. junction box
- Max. units per power pack: B = seven; BZ = nine
- Dimensions : 4.5” x 4.5” x 1.25” (115mm x 115mm x 32mm) W x L x D
- UL listed
- Five-year warranty
NON VERIFIED CONTENT
