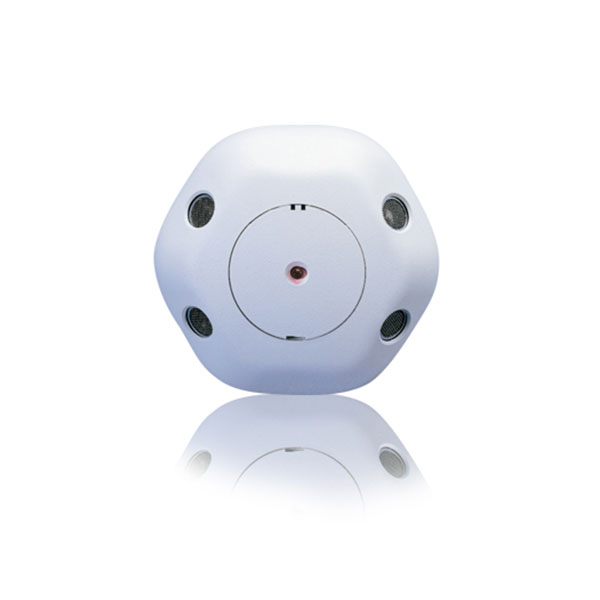

Wattstopper WT-SERIES ULTRASONIC CEILING SENSOR

Description

Wattstopper WT-SERIES ULTRASONIC CEILING SENSOR. This is the ultrasonic ceiling sensor. Wattstopper’s WT Ultrasonic Ceiling Sensors utilize 32 KHz frequency ultrasonic technology to detect occupancy. The sensors are available in several models to control lighting in a wide variety of applications.

WT Sensors are 24 VDC and utilize advanced, omni-directional, ultrasonic technology. When movement is detected in a controlled area, it switches lighting on through a Wattstopper power or auxiliary pack. The sensor controls the power pack through low voltage wiring. Once the area is vacated and the time delay has elapsed, lighting systems automatically switch off.

Features

• ASP circuitry helps to eliminate false on
• Advanced, omni-directional, ultrasonic technology for
reliable occupancy detection
• Angled transmitter and receiver pairs help optimize
sensitivity while eliminating unwanted detection from ceiling
air movement
• Coverage ranges from 600 to 2200 square feet, and 90 linear
feet for hallways
• Isolated relay can interface with HVAC, EMS or an additional
lighting load
• DIP switch-adjustable time delay and sensitivity
• LED indicates occupancy detection
• BAA/TAA-compliant models available

Specifications

• Solid state, crystal-controlled (32.768 kHz ± 0.002%)
• Omni-directional transmission (360° coverage)
• Temperature and humidity resistant 32 kHz receivers
• Digital DIP switch time delay: 15 seconds to 30 minutes
• Isolated relay with N/O and N/C outputs; rated for
1 Amp @ 30 VDC/VAC
• Mounts to ceiling tile or Wiremold V5738-WH box
• Max. WT-605s per power pack: B=4, BZ=5
Max. WT-600s per power pack: B= 3, BZ=4
Max. WT-1105s, WT-2205s, WT-2255s: B=3, BZ=5
Max. WT-1100s, WT-2200s, WT-2250s: B=2, BZ=3
• Dimensions: 4.8” x 1.5” (122mm x 38mm) diameter x depth
• UL and cUL listed
• Five year warranty

For other items like the Wattstopper WT-SERIES ULTRASONIC CEILING SENSOR click here.

For more information on Wattstopper’s line of lighting solutions click here.

 WS-Cutsheet-WT-Ultrasonic-Ceiling-Sensors

• Solid state, crystal-controlled (32.768 kHz ± 0.002%)
• Omni-directional transmission (360° coverage)
• Temperature and humidity resistant 32 kHz receivers
• Digital DIP switch time delay: 15 seconds to 30 minutes
• Isolated relay with N/O and N/C outputs; rated for 1 Amp @ 30 VDC/VAC
• Mounts to ceiling tile or Wiremold V5738-WH box
• Max. WT-605s per power pack: B=4, BZ=5 Max. WT-600s per power pack: B= 3, BZ=4 Max. WT-1105s, WT-2205s, WT-2255s: B=3, BZ=5 Max. WT-1100s, WT-2200s, WT-2250s: B=2, BZ=3
• Dimensions : 4.8” x 1.5” (122mm x 38mm) diameter x depth
• UL and cUL listed
• Five-year warranty
