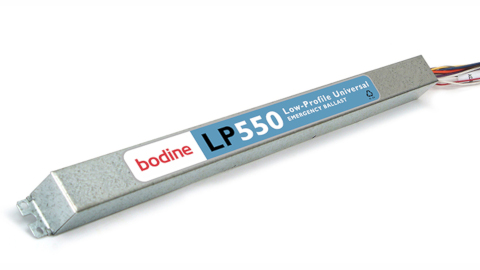

Bodine LP550 Fluorescent Emergency Ballast

Description

Bodine LP550 Fluorescent Emergency Ballast. Low-Profile for Space-Limited Fixtures, standard and HO T5 and T8 Lamps. End-of-Lamp-Life Compatible. The LP550 low-profile emergency ballast works in conjunction with a low-profile or standard-size AC ballast to convert new or existing standard
or high-output T5 fluorescent fixtures into unobtrusive emergency lighting. The emergency ballast consists of a high-temperature nickel cadmium battery, charger and electronic circuitry in one compact case

Benefits

• Low Profile case
• Emergency mode lumen output up to 700 lumens
• End-of-Lamp-Life Compatible

Specifications

UL LISTED
Factory or Field Installation
(Indoor and Damp)

Illumination Time
90 Minutes

Initial Light Output
390 – 700 Lumens @ 25°C

Full Warranty
5 Years (NOT pro-rata)

Dual Input Voltage
120/277 VAC, 60 Hz

AC Input Current
190 mA

AC Input Power Rating
2.6 Watts

Test Switch
Single Pole

Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Battery Charging Current
165 mA

Recharge Time
24 Hours

Charging Indicator Light
LED

Temperature Rating (Ambient)
0°C to +50°C (32°F to 122°F)

Dimensions
18.5” x 1.18” x 1.18”
(470 mm x 30 mm x 30 mm)
Mounting Center 18.1” (460 mm)
Weight
2.3 lbs. (1.0 kg)
