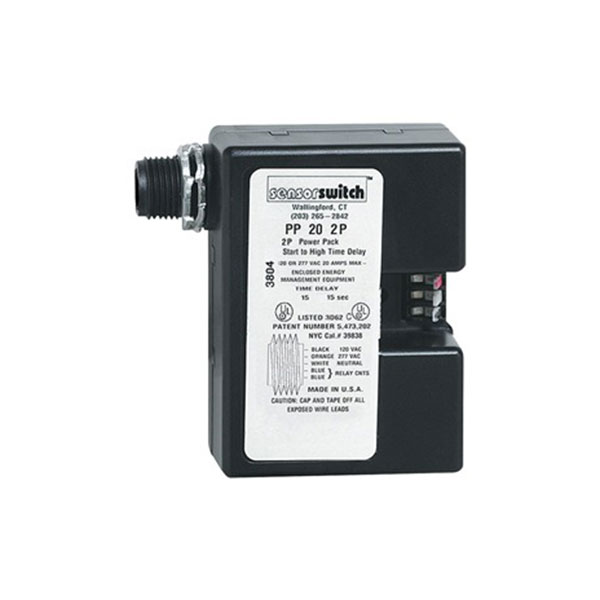

PP20 2P – SWITCH POWER PACK 2-POLE

Call for Price

2-POLE POWER PACK FROM SENSOR SWITCH THAT TRANSFORMS CLASS I HIGH VOLTAGE (120/277 VAC OR 347 VAC) TO CLASS 2 15 VDC FOR POWERING REMOTE SENSORS

SKU: PP20 2P Categories: , Tags: , , , , ,

  • Description
  • Specs
  • Reviews (0)
  • NON VERIFIED

Description

Power packs are the heart of the low voltage sensor system. A PP20 Series power pack transforms
Class I high voltage (120/277 VAC or 347 VAC) to Class 2 15 VDC for powering remote sensors. The
PP20 and the SP20 Series slave pack are also capable of switching lighting loads on and off using
their internal relays. Class 2 wire leads connect to 18 to 22 AWG low voltage cable running to the
sensors, making installation easy and clean. Power packs also have an elongated chase nipple that
allows it to be mounted either directly through a ½ inch knockout into a junction box, or inside an
adjacent box for meeting specific local code requirements in ceiling plenums.
The most versatile power pack is the PP20, which utilizes a patented relay contact protection and
can power up to 14 sensors. Dual-circuit control can be handled by two PP20’s, one PP20 2P Series
2-Pole power pack, or a PP20 power pack and a SP20 slave packs.
FEATURES

  •  Powers Low Voltage Sensors (PP20/PP20 2P only)
  •  Self-Contained Relay(s) Switch Line Voltage Loads
  • Relay Contact Protection
  • Plenum Rated

PDF BUTTONPP20 SPEC SHEET

Specifications:

  • Size:   (not including chase nipple)
    PP20 / SP20: 3.00” H x 2.25” W x 1.88” D
    (7.62 cm x 5.72 cm x 4.78 cm)
    PP20 2P: 4.13”H x 3.00”W x 1.88”D
    (10.49 cm x 7.62 cm x 4.78 cm)
  • Mounting:    1/2” knockout
  • Operating Voltage:  120, 240, 277, or 347 VAC (single phase)
  • Relay Current Reqs: 40 mA
  • Switching Load: 20Amps/ Pole
  • Output Voltage/Current:  15 VDC, 150 mA (PP20/PP20 2P only)
  • Motor Load:    1 HP
