Bodine BAC40EM6 Combined AC/Emergency Driver

Description

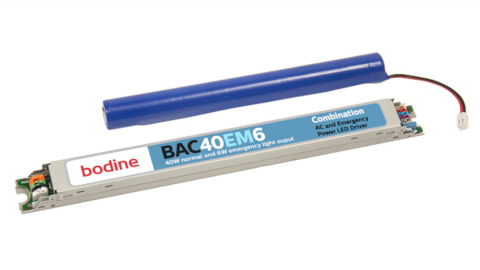

Bodine BAC40EM6 Combined AC/Emergency Driver
Combination AC/Emergency driver for LED strips
Class 2 output
40 Watts output power (AC)
6 Watts output power (Emergency)

Features & Benefits:
•• Combined AC and Emergency LED driver in one compact, low-profile case
•• AC/EM driver compatibility is confirmed
•• Separate battery for mounting flexibility
•• Fewer wires to simplify installation
•• Smart Charger Technology for low energy consumption
•• Meets CEC Title 20 (California Energy Commission) efficiency standards
•• Class 2 output – UL 1310 Certified, CSA 22.2 No 223-M91 compliant

•• Meets CEC Title 20 (California Energy Commission) efficiency standards

•• Emergency mode lumen output of up to 800 lumens

•• Compatible with a variety of LED strip manufacturers

•• SimpleSet Programming for AC operation

•• 0 – 10V dimming to 1%

•• RoHS compliant

•• Meets CEC Title 20 (California Energy Commission) efficiency standards

Specifications

UL Recognized

Factory Installation Only

(Indoor and Damp)

Universal Input Voltage

120 thru 277 VAC, 50/60 Hz

Output Voltage

22.5 – 54V

Surge Protection

(Ring Wave, KV)

2.5KV

Dimming

0-10V Analog, Class 1 or

Class 2 wiring

Dimming Range

(with specified dimmers) 1% ~ 100% (for output current range 0.25 – 1.1A)

Minimum Output Current

0.0025A

Dimming Source Current

150 μA

Temperature Rating

Electronic Case: Tc Life – 75°C

UL – 85°C

Operating Ambient Temp Range:

0°C – 50°C (32°F to 122°F)

Warranty

5 Years (NOT pro-rata)

Emergency Operation

Illumination Time

90 Minutes Emergency

AC Input Current

60 mA Maximum (Charging Only)

AC Input Power Rating

5.5 W Maximum (Charging Only)

Output Power

6.0 W Maximum (Emergency)

Test Switch Charging Indicator Light

Illuminated Test Switch

Battery

High-Temp, Maintenance-Free

Nickel-Cadmium Battery

7- to 10-Year Life Expectancy

Weight

2.0 lbs. / 0.91 kgs. Including battery

Recharge Time

24 Hours (36 hours after

deep discharge)
