Description

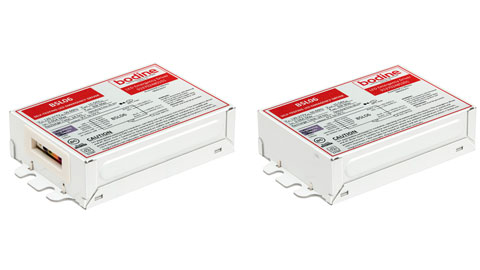

Bodine BSL06M5UAK55BSI1 Compact LED Emergency Driver

Benefits:

New compact design for space-limited LED applications

Test switch with plenum rated cable

Smart Charger Technology for low energy consumption

Manually deactivate emergency operation for shipping or storing product via test switch

Emergency operation automatically reactivates when AC power is reapplied

Meets Title 20 CEC (California Energy Commission) efficiency standards

Automatic code-compliant testing

Controlled power for predictable discharge

Color-coded, poke-in terminals to enhance wiring accuracy

and ease of assembly/installation

BSL06M5 includes: Wires, mounting plate adapter, wire extraction tool or screws

RoHS compliant



Specifications

UL Listed for US and Canada

Listed to UL924 and tested to CSA 22.2 No. 141

Field or Factory Installation (Indoor and Damp)

Output Class 2 Compliant

Illumination Time

90 Minutes

Initial Light Output

Up to 780 lumens*

Full Warranty

5 Years (NOT pro-rata)

Universal Input Voltage

120-277 VAC, 50/60 Hz

Output Voltage

15 – 54 VDC

Output Power

6.0 W initial (regulated)

Test Switch / Charging Indicator Light

Test Switch with Plenum Rated Cable**

35.43” (900 mm)

Battery

High-Temperature, Maintenance-Free

Lithium Ion Battery

7- to 10-Year Life Expectancy

Recharge Time

24 Hours

Temperature Rating

Ambient : 0°C to +55°C (32°F to 122°F)

Case: Tc (max): 65°C

Dimensions

4.21″ x 3.00″ x 1.18″ (107 mm x 76 mm x 30 mm)

Mounting Center 4.59″ (117 mm)

Weight

0.75 lbs. (0.34 kg)
