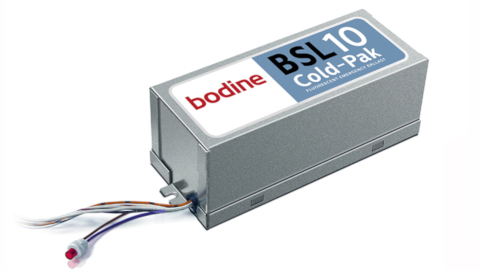

Bodine BSL10COLD LED Emergency Driver

Description

Bodine BSL10COLD LED Emergency Driver Class 2
Listed for field or factory installation
Extreme Cold Environments
14.0 Watts initial output power

Benefits:

•• Listed for field or factory installation – UL 924 Emergency Lighting Compliant

•• Class 2 output (UL 1310 Certified)

•• Easy to install – Operates in extreme cold environments

•• Emergency mode initial lumen output of up to 1400 lumens based on

100 lm/W min efficacy

•• Compatible with AC drivers and LED loads rated for Class 2

•• The output power is automatically adjusted for LED load configurations

within the voltage range of 24-52V

•• RoHS Compliant

Specifications

UL Listed

For Field or Factory Installation

(Indoor and Damp)

Illumination Time

90 Minutes

Full Warranty

5 Years (NOT pro-rata)

Dual Input Voltage

120 or 277 VAC, 60 Hz

AC Input Current

200 mA maximum with internal heater on

90 mA maximum when internal heater off

AC Input Power Rating

25 W maximum with internal heater on

7 W maximum when internal heater off

Output Voltage

24-52 VDC

Output Power

14.0 W initial output power

NFPA 101 and NEC 700.12 compliant

Test Switch/Charging Indicator Light

Two-Wire Illuminated Test Switch (2W-ITS)

Battery

High-Temperature, Maintenance-Free

Nickel-Cadmium Battery

7- to 10-Year Life Expectancy

Battery Charging Current

270 mA average

Recharge Time

24 Hours

Temperature Rating (Ambient)

-20°C to +55°C (-4°F to +131°F)

Dimensions

8.968” x 3.457” x 2.930”

(227.8 mm x 87.8 mm x 74.4 mm)

Mounting Center 8.514” (216.3 mm)

Weight

3.6 lbs. (1.6Kg) – metal w/o conduit
