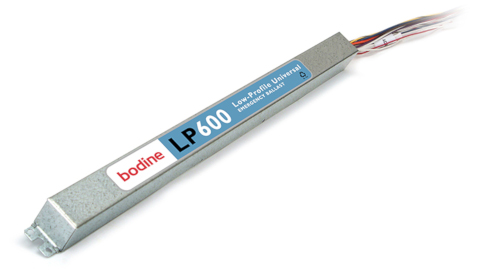

Bodine LP600 Fluorescent Emergency Ballast

Description

Bodine LP600 Fluorescent Emergency Ballast. Low-Profile for Space-Limited Fixtures, standard and HO T5 and T8 Lamps. End-of-Lamp-Life Compatible. The LP600 low-profile emergency ballast works in conjunction with a low-profile or standard-size AC ballast to convert new or existing standard or
high-output T5 and T8 fluorescent fixtures into unobtrusive emergency lighting. The emergency ballast consists of a high-temperature nickelcadmium battery, charger and electronic circuitry in one compact case

Benefits

• Low Profile case
• Emergency mode lumen output up to 1325 lumens
• End-of-Lamp-Life Compatible
• Compatible with TLED lamps (see Table 1)

Specifications

UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2 No. 141
Field or Factory Installation (Indoor and Damp)Output Class 2 Compliant

Illumination Time
90 Minutes

Initial Light Output
600 – 1325 Lumens @ 25°C

Full Warranty
5 Years (NOT pro-rata)
Dual Input Voltage
120/277 VAC, 60 Hz

AC Input Current
180 mA

AC Input Power Rating
3.0 Watts

Test Switch
Single Pole

Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Battery Charging Current
165 mA

Recharge Time
24 Hours

Charging Indicator Light
LED

Temperature Rating (Ambient)
0°C to +50°C (32°F to 122°F)

Dimensions
21.5” L x 1.18” W x 1.18” H
(546 mm x 30 mm x 30 mm)
Mounting Center 21.1” (536 mm)
Weight
3.3 lbs. (1.5 kg)
