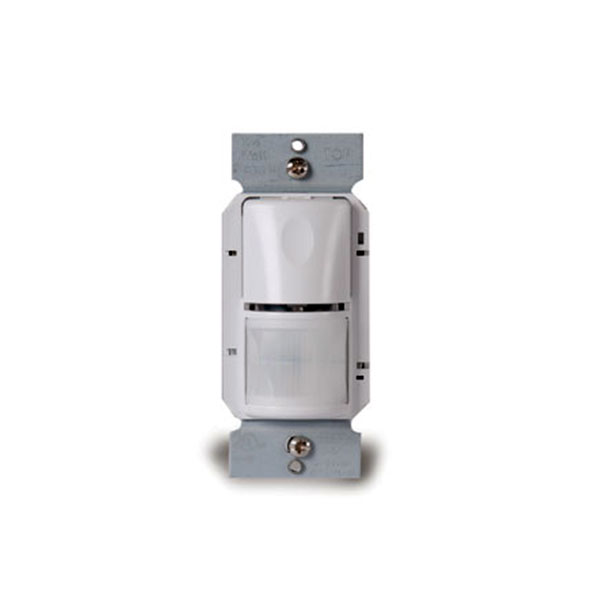

WS-301-X

WS-301 – PASSIVE INFRARED WALL SWITCH OCCUPANCY SENSOR

THE WS-301 IS GREAT FOR RETROFIT PROJECTS AND HAS THE FLEXIBILITY TO WORK IN A VARIETY OF APPLICATIONS INCLUDING OFFICES, CONFERENCE ROOMS, BREAK ROOMS AND UTILITY ROOMS. ENERGY SAVINGS FOR THESE AREAS CAN BE AS HIGH AS 60% SINCE LIGHTING WILL NO LONGER REMAIN ON ONCE THE ROOM IS VACANT. WITH A COMPETITIVE PRICE, LOW INSTALLATION COST, AND HIGH ENERGY SAVINGS, PAYBACKS ARE USUALLY WELL UNDER TWO YEARS. – BY WATTSTOPPER

Clear
Visit our new shop at LITERITE.COM to shop lighting controls!
SKU: N/A Categories: , , , Tags: , ,
  • Description
  • SPECS
  • MANUAL
  • Please visit literite.com for our new store!
  • NON VERIFIED

Description

This is the passive infrared wall switch occupancy sensor. The WS-301 Passive Infrared (PIR) Wall Switch Sensor turns lighting or fan loads on and off based on occupancy and ambient light level. The sensor replaces existing wall switches and fits behind a standard decorator wall plate.

The WS-301 senses the difference between infrared energy from a human body in motion and the background space to turn on lighting automatically when occupancy is detected. After a user-specified length of time when no occupancy is detected, lighting automatically switches off. The sensor can also be used with line voltage switches for multi-level lighting. Check out Wattstopper DLM products here.

  • Complies with 2011 NEC requirements
  • Zero crossing circuitry reduces stress on the relay and results in increased sensor life
  • Adjustable time delay and sensitivity
  • Custom two-tier Fresnel lens enhances detection at the desktop level
  • Sensor coverage tested to NEMA Guide Publication WD 7-2000
  • Light level sensor holds lights off when ambient lighting is above the preset level
  • Patented voltage drop protection
  • For safety, there is no leakage to load in the off mode and sensor is safety grounded
  • LED indicates occupancy detection

 WS-Cutsheet-WS-301-Passive-Infrared-Wall-Switch-Occupancy-Sensor

  • WS-301: 120/277VAC; 50/60Hz, 1/6 hp @ 120VAC, 0-1000W ballast, LED, and tungsten @ 277VAC, 0-1200W ballast and LED
  • WS-301-347: 347VAC; 50/60Hz, 1/6 hp; 0-1500W ballast and LED
  • Time delay adjustable from 30 seconds up to 30 minutes
  • Adjustable sensitivity from 20% to 100%
  • Adjustable light level setting of 10 to 200 footcandles (107.6 to 2,153 lux)
  • Coverage: Major motion 35’ x 30’ Minor motion 20’ x 15’
  • Dimensions (L x W x D): 2.68” x 1.75” x 1.04” (68mm x 44mm x 27mm)
  • UL and cUL listed
  • Five-year warranty

 WS INSTALL-WS-301
