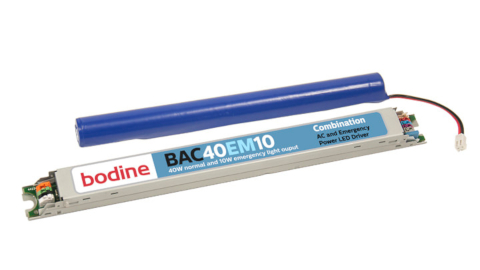

Bodine BAC40EM10 Combined AC/Emergency Driver
Bodine BAC40M10 Combined AC/Emergency Driver
Combination AC/Emergency
driver for LED strips
Class 2 output
40 Watts output power (AC)
10 Watts output power (Emergency)
- Description
- SPECS
- INSTRUCTIONS
- Please visit literite.com for our new store!
- NON VERIFIED
Description
Bodine BAC40M10 Combined AC/Emergency Driver
Combination AC/Emergency
driver for LED strips
Class 2 output
40 Watts output power (AC)
10 Watts output power (Emergency)
Features & Benefits:
•• Combined AC and Emergency LED driver in one
compact, low-profile case
•• AC/EM driver compatibility is confirmed
•• Separate battery for mounting flexibility
•• Fewer wires to simplify installation
•• Smart Charger Technology for low energy consumption
•• Meets CEC Title 20 (California Energy Commission)
efficiency standards
•• Class 2 output – UL 1310 Certified, CSA 22.2 No 223-
M91 compliant
•• Meets CEC Title 20 (California Energy Commission)
efficency standards
•• Emergency mode lumen output of up to 1300 lumens
•• Compatible with a variety of LED strip manufacturers
•• SimpleSet Programming for AC operation
•• 0 – 10V dimming to 1%
•• RoHS compliant
•• Meets CEC Title 20 (California Energy Commission) efficiency standards
Specifications
UL Recognized
Factory Installation (Indoor and Damp)
Universal Input Voltage
120-277 VAC, 50/60 Hz
Output Voltage
22.5 – 54V
Temperature Rating (Ambient)
Electronic Case: Tc Life – 75°C, UL – 85°C
Battery: Tc (max): 60C
Operating Ambient Temp Range: 0°C – 50°C (32°F to 122°F)
Warranty
5 Years (NOT pro-rata)
Illumination Time
90 Minutes
AC Input Current
95 mA Maximum
Ac Input Power Rating
5.5 W Maximum
Output Power
10 W Maximum
Test Switch/ Charging Indicator
Illuminated Test Switch 2W-ITS
Battery
High-Temperature
Mainenance-Free
Nickel-Cadmium Battery
7 to 10 Year Life Expectancy
Recharge Time
24 Hours
Maximum Output Power
40W
Output Current (Programmable)
.1 – 1.1A
AC Input Current
0.45A @ 120V
0.19A @ 277V
Maximum Input Power
51W
THD @ Maximum Load
<10%
Power Factor @ Max Load
0.95
Surge Protection
1.5KV
Dimming
0-10V Analog, Class 1 or Class 2 wiring
Dimming Range
1% – 100%
Minimum Output Current
0.0025A
Dimensions
Case – 14.1” x 1.18” x 1.0” (mounting center -13.78”)
Battery – 1” Diameter x 14.8”L (mounting center – 14.5”)
