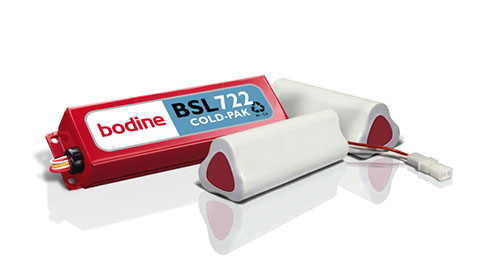

Bodine BSL722 COLD PAK LED Emergency Driver
Bodine BSL722 COLD PAK LED Emergency Driver Extreme Cold Environments
23.1 Watts output power
- Description
- SPECS
- INSTRUCTIONS
- Please visit literite.com for our new store!
- NON VERIFIED
Description
Bodine BSL722 COLD PAK LED Emergency Driver Extreme Cold Environments
23.1 Watts output power
Benefits:
•• Operates in extreme cold environments
•• For use in damp locations as well as
sealed and gasketed fixtures
•• Universal input (120 through 277 VAC, 50/60 Hz)
Specifications
UL Recognized for US and Canada
Factory Installation only
(Indoor and Damp locations, including sealed and
gasketed fixtures)
Illumination Time
90 Minutes
Full Warranty
3 Years (NOT pro-rata)
Universal Input Voltage
120 through 277 VAC, 50/60 Hz
AC Input Current
260 mA
AC Input Power Rating
37 W
Output Voltage
28.0 to 33.0 VDC
Output Current
700 mA Nominal
Output Power
23.1 W (Maximum)
Test Switch
Low Voltage, IP67 rated ITS
Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Batteries
7- to 10-Year Life Expectancy
Battery Charging Current
160 mA
Recharge Time
24 Hours
Charging Indicator Light
LED (Optionally Provided)
Temperature Rating (Ambient)
-20°C to +60°C (-4°F to 140°F)
Dimensions
9.4” x 2.2” x 1.05”
(238 mm x 55.9 mm x 26.7 mm)
Mounting Center 8.9” (226 mm)
Weight
4.75 lbs. (2.12 kg)
