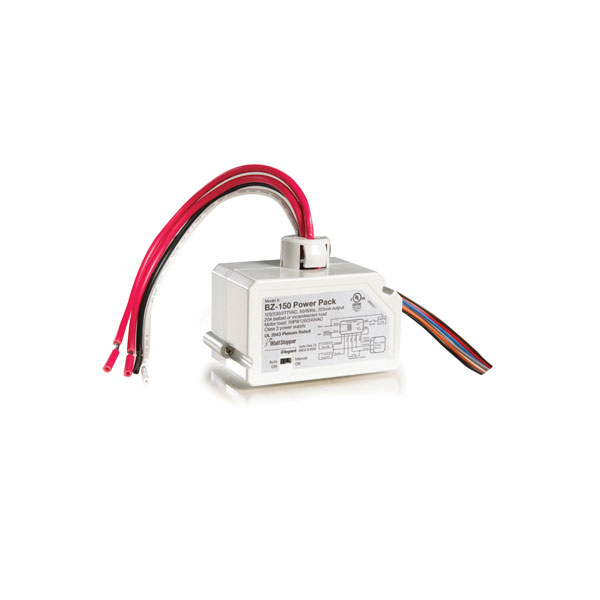

BZ-150 – UNIVERSAL VOLTAGE POWER PACK

$47.52 $45.00

THE BZ-150 CAN CONTROL LIGHTING CIRCUITS, SELF-CONTAINED AIR CONDITIONERS, PUMPS, FANS, MOTORS, VAV SYSTEMS, MOTORIZED DAMPER CONTROLS AND SETBACK THERMOSTATS. BY USING TWO LOW VOLTAGE SWITCHES, A CEILING SENSOR AND TWO BZ-150S (ONE SET TO AUTO ON AND ONE SET TO MANUAL ON) BI-LEVEL SWITCHING WITH MANUAL-ON OPERATION CAN BE ACHIEVED. THE HOLD-ON INPUT IS IDEAL FOR RETAIL AND COMMERCIAL FACILITIES THAT WANT TO OVERRIDE AN OCCUPANCY SENSOR AND FORCE LIGHTING ON DURING NORMAL BUSINESS HOURS. AFTER HOURS, A TIME CLOCK SIGNALS THE BZ-150 TO CANCEL THE HOLD-ON LIGHTING MODE, ALLOWING THE SENSOR TO RESUME CONTROL. THE HOLD-OFF INPUT CAN BE USED FOR LOAD SHEDDING OR SECURITY SYSTEMS – BY WATTSTOPPER

Clear
SKU: N/A Categories: , Tags: ,

  • Description
  • SPECS
  • Reviews (0)
  • NON VERIFIED

Description

This is the universal voltage power pack. The BZ-150 Universal Voltage Power Pack is full featured and can provide 24 VDC operating voltage to Wattstopper’s low voltage occupancy sensors. In addition, the BZ-150 enables manual-on, hold-on, hold-off and load shed applications when used with lighting control panels or building management systems. This device is constructed with environmentally friendly materials and is RoHS-compliant.

The BZ-150 consists of a high-efficiency switching power supply and a high-current relay. It has an input of 120/277 VAC, 50/60Hz, and an output of 24VDC, 225mA. It turns the connected load on and off automatically based on occupancy sensor input, or manually with a low-voltage momentary switch. The dip switch setting allows the user to select Auto ON or Manual ON as the operating mode. Additional low-voltage inputs provide hold-on and hold-off features for broader applications. Check out Wattstopper DLM products here.

  • Self-contained power supply relay system
  • Efficient switching power supply providing optimized current output based on number of sensors
  • LED indicates status of relay or if there is a low-voltage overcurrent
  • Hold-on and hold-off inputs integrate with BMS, lighting control panels & other building systems
  • Integrates with low-voltage momentary switch to control any 24VDC occupancy sensor
  • The product meets the materials restrictions of RoHS
  • Provides auto-on or manual-on field-selectable operating mode
  • Zero crossing circuitry for reliability and increased product life
  • UL 2043 plenum rated for cost-effective installation
  • 1/2” snap-in nipple attaches to standard electrical enclosures through 1/2” knockouts
  • 14 AWG wires on the relay for 20A operation
  • BAA/TAA-compliant models available

 WS-Cutsheet-BZ-150-Universal-Voltage-Power-Pack

  • 120/277VAC, 50/60Hz voltage input
  • Secondary voltage of 24 VDC
  • Secondary output of 225 mA (with relay connected)
  • Low-voltage leads are rated for 300 volts
  • UL-rated 94 V-O grey plastic enclosure
  • Dimensions: 1.6” x 2.75” x 1.6” (40.6mm x 69.9mm x 40.6mm) H x W x D with a 1/2“ (12.7mm) snap-in nipple
  • UL and cUL listed
  • Five year warranty
