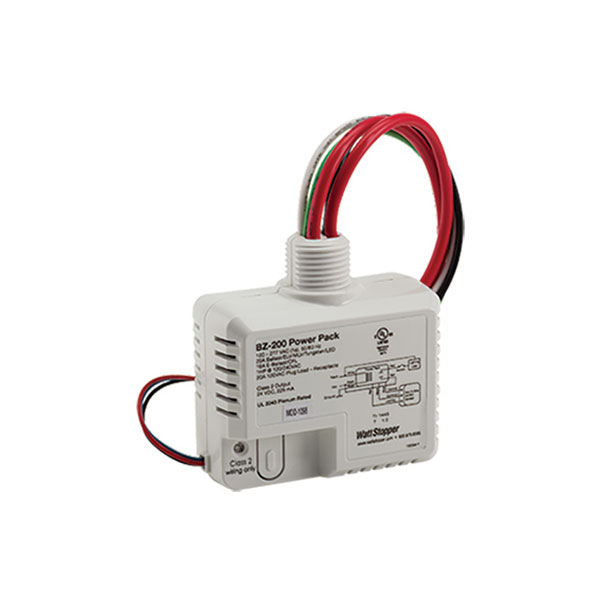

BZ-200 – LIGHTING & PLUG LOAD POWER PACK

$40.25 $38.00

THE BZ-200 POWER PACK IS FLEXIBLE ENOUGH TO CONTROL LIGHTING CIRCUITS, PLUG LOAD CIRCUITS, OR HVAC LOADS INCLUDING SELF-CONTAINED AIR CONDITIONERS, PUMPS, FANS, MOTORS AND MOTORIZED DAMPER CONTROLS. IT IS WELL-SUITED FOR ANY APPLICATION WHICH REQUIRES HIGH-VOLTAGE SWITCHING THROUGH LOW-VOLTAGE CONTROLS. EACH POWER PACK CAN POWER MULTIPLE SENSORS WITH A COMBINED POWER DRAW OF UP TO 225MA. FOR APPLICATIONS WITH MULTIPLE LOADS, INCLUDING LIGHTING AND PLUG LOADS, UP TO FOUR POWER PACKS MAY BE WIRED IN PARALLEL TO ONE OR MORE SENSORS – BY WATTSTOPPER

Clear
SKU: N/A Categories: , Tags: ,

  • Description
  • SPECS
  • Reviews (0)
  • NON VERIFIED

Description

This is the lighting & plug load power pack. The BZ-200 power pack switches connected loads On and Off in response to Wattstopper low voltage occupancy sensors. It also provides up to 225mA at 24VDC to power the sensors. This device is constructed with environmentally friendly materials and is RoHS-compliant.

The BZ-200 consists of a high-efficiency switching power supply and a high-current relay. It has an input of 120-277 VAC, 50/60Hz, and an integral On / Off button to switch out power, allowing the installer to quickly verify load operation. Following installation, the power pack turns the connected load On and Off automatically based on occupancy sensor input. Check out Wattstopper DLM products here.

  • Efficient switching power supply provides optimized current output based on number of sensors
  • Includes short circuit and thermal protection
  • LED indicates status of relay or presence of low-voltage overcurrent
  • UL 2043 plenum rated for cost-effective installation
  • UL listed for control of lighting and plug loads
  • Tested to NEMA 410 criteria for electronic ballast and driver inrush current
  • 1/2” threaded nipple attaches to standard electrical enclosures through 1/2” knockouts
  • 12 AWG wires on the relay for 20A operation
  • The product meets the materials restrictions of RoHS
  • BAA/TAA-compliant models available

 WS-Cutsheet-BZ-200-PowerPack

  • Input/output voltage:120-277VAC, 50/60Hz
  • Secondary output: 24VDC, 225mA (with relay connected)
  • Low-voltage leads rated for 300 volts
  • UL-rated 94 V-O plastic enclosure
  • Operating conditions: -4 to 131° F (-20 to 55° C); 5-95% RH, non-condensing
  • Dimensions: 1.5” x 3” x 2.4” (37mm x 77mm x 61mm) H x W x D with .6“L (15mm) threaded nipple
  • UL and cUL listed
  • Five-year warranty
