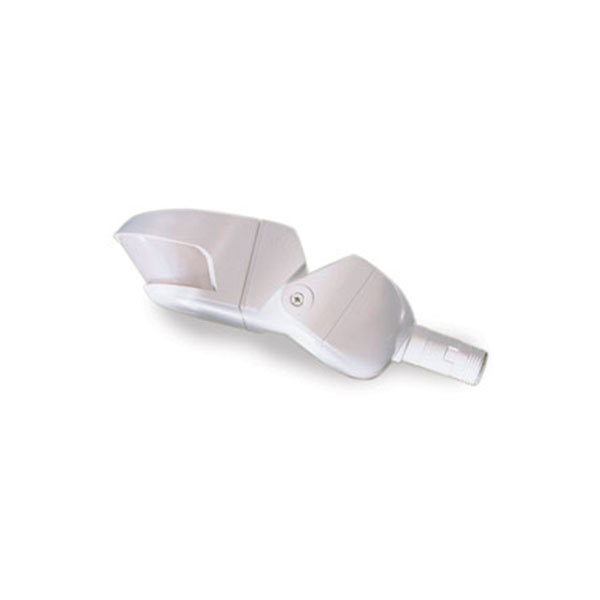

EW-200 SERIES – OUTDOOR MOTION SENSOR

$69.30$86.10

APPLICATIONS FOR COMMERCIAL SETTINGS INCLUDE WALKWAYS, PARKING LOTS, DOCK LIGHTING AND WAREHOUSES. TYPICAL USES OUTSIDE A HOME INCLUDE GARAGES, BACKYARDS, ENTRANCE WAYS AND PORCHES -BY WATTSTOPPER

Clear
SKU: N/A Categories: , , Tags: ,

  • Description
  • SPECS
  • Reviews (0)
  • NON VERIFIED

Description

This is the outdoor motion sensor. Wattstopper’s EW outdoor motion sensors provide occupancy based control of outdoor lighting. Raintight and rated for -40°F to 130°F, EW sensors perform reliably in all weather conditions.

EW sensors operate at line voltage and can be mounted onto a standard, outdoor junction box. Utilizing advanced PIR technology, the sensors detect the difference between infrared energy in motion and the background space to turn lighting on when a person or vehicle enters the coverage area. After the area is vacated and the time delay elapses, lighting automatically turns off. The EW’s dual PIR detectors and three level lens increase the detection density as well as the accuracy of motion detection. Check out Wattstopper DLM products here.

  • Sensors can be mounted on walls, eaves, or ceilings for installation convenience
  • 270° coverage
  • Front rotates for easy coverage adjustment
  • Precision, double-shot tooling with internal silicon gaskets prevents water and dust contamination
  • No tools needed to aim or adjust lamp holders for speedier installation
  • Optional override-ON to turn lights on remotely for the length of the time delay
  • ON/OFF control based on daylight levels via adjustable light level setting
  • Zero crossing circuitry reduces stress on the relay and results in increased sensor life
  • ASIC enhances reliability and helps to eliminate false triggers
  • Pulse Count Processing eliminates false triggers and provide RFI and EMI immunity
  • Patented Voltage Drop Protection
  • Solid state digital microprocessor offers increased reliability
  • User-adjustable time delay from 12 seconds to 16 minutes

 WS-Cutsheet-EW-Outdoor-Motion-Sensors

  • 120 VAC or 277 VAC operation
  • UL 773A rated raintight; UL 1571 rated for wet locations
  • Operating temperature: -40° to 130°F (-40 to 54°C)
  • Adjustable light level of 0.5 to 200 footcandles (5.4 - 2,152.8 lux)
  • Isolated relay with N/O and N/C outputs; rated for 1 Amp @ 30 VDC/VAC (EW-200)
  • 1/2” threaded nipple fits standard NEMA weatherproof fixture fitting

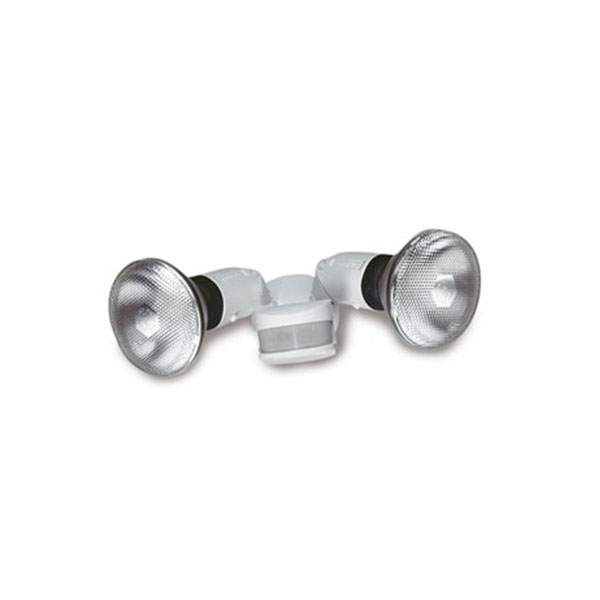

  • Lamp holders use PAR 20 or 38 lamps, up to 150W each lamp*
  • Compatible with all electronic ballasts and PL lamp ballast systems
  • Sensor dimensions: 6.7” x 3.2” x 2.2” (170mm x 80mm x 55mm)
  • UL and cUL listed
  • Five year warranty
