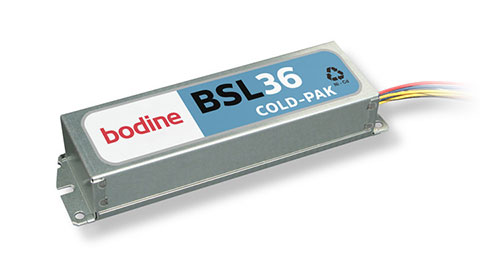

Bodine BSL36 COLD LED Emergency Driver

Description

Bodine BSL36 COLD LED Emergency Driver Class 2
Classified for Field Installation
Extreme Cold Environments
6 Watts Minimum Initial Output Power

Benefits:

•• Listed for field or factory installation – UL 924 Emergency Lighting Compliant

•• Operates in extreme cold environments (-20°C to 55°C)

•• Class 2 output (UL 1310 Certified)

•• Emergency mode minimum initial lumen output of 700 lumens based on 116

lm/W min efficacy

•• Compatible with AC drivers and LED loads rated for Class 2

•• The output power is automatically adjusted for LED load configurations

within the voltage range of 15-52V

•• RoHS Compliant

Specifications

UL Listed for US and Canada

For Field or Factory Installation

(Indoor and Damp)

Illumination Time

90 Minutes

Full Warranty

5 Years (NOT pro-rata)

Dual Input Voltage

120 or 277 VAC, 60 Hz

AC Input Current

120 mA maximum with internal heater on

50 mA maximum when internal heater off

AC Input Power Rating

13 W maximum with internal heater on

4 W maximum when internal heater off

Output Voltage

15-52 VDC

Output Power

6.0 W minimum initial (regulated)

NFPA 101 and NEC 700.12 compliant

Test Switch/Charging Indicator Light

Two-Wire Illuminated Test Switch (2W-ITS)

Battery

High-Temperature, Maintenance-Free

Nickel-Cadmium Battery

7- to 10-Year Life Expectancy

Battery Charging Current

280 mA average

Recharge Time

24 Hours

Temperature Rating (Ambient)

-20°C to +55°C (-4°F to +131°F)

Dimensions

9.4” x 2.6” x 1.5”

(238 mm x 67 mm x 38 mm)

Mounting Center 8.9” (226 mm)

Weight

2.1 lbs. (.95Kg) – metal w/o conduit
